Product Code :
T25038
Product Name :

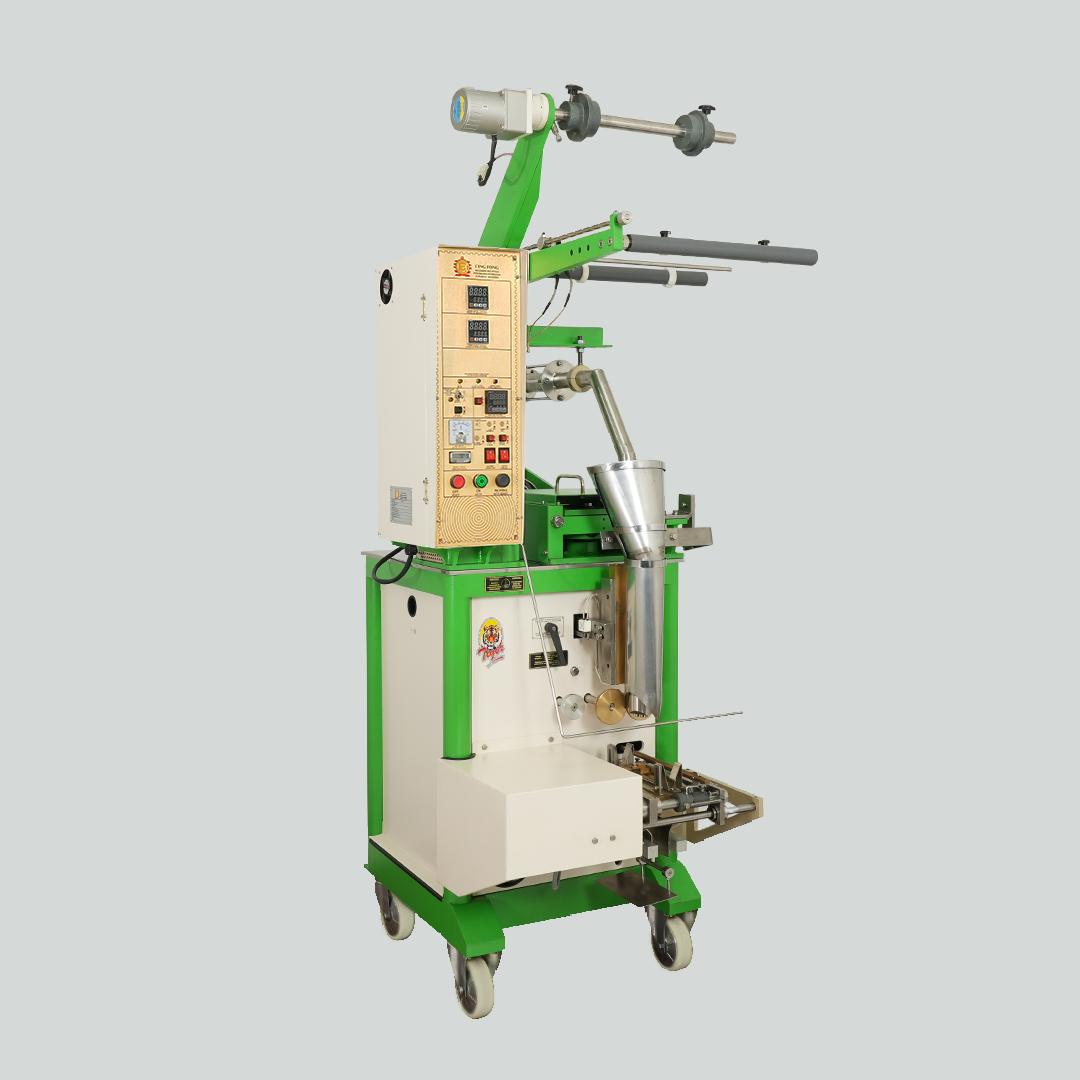

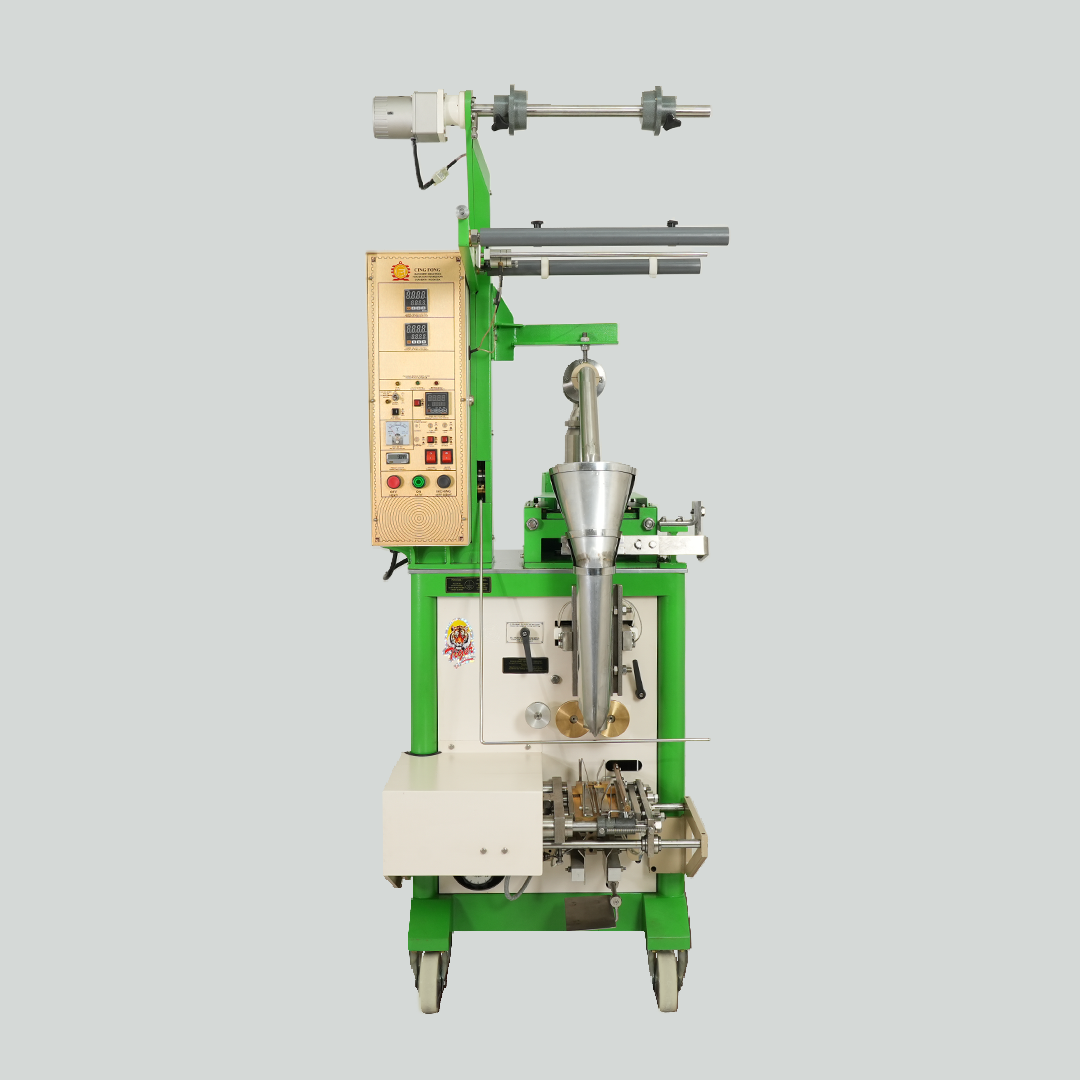

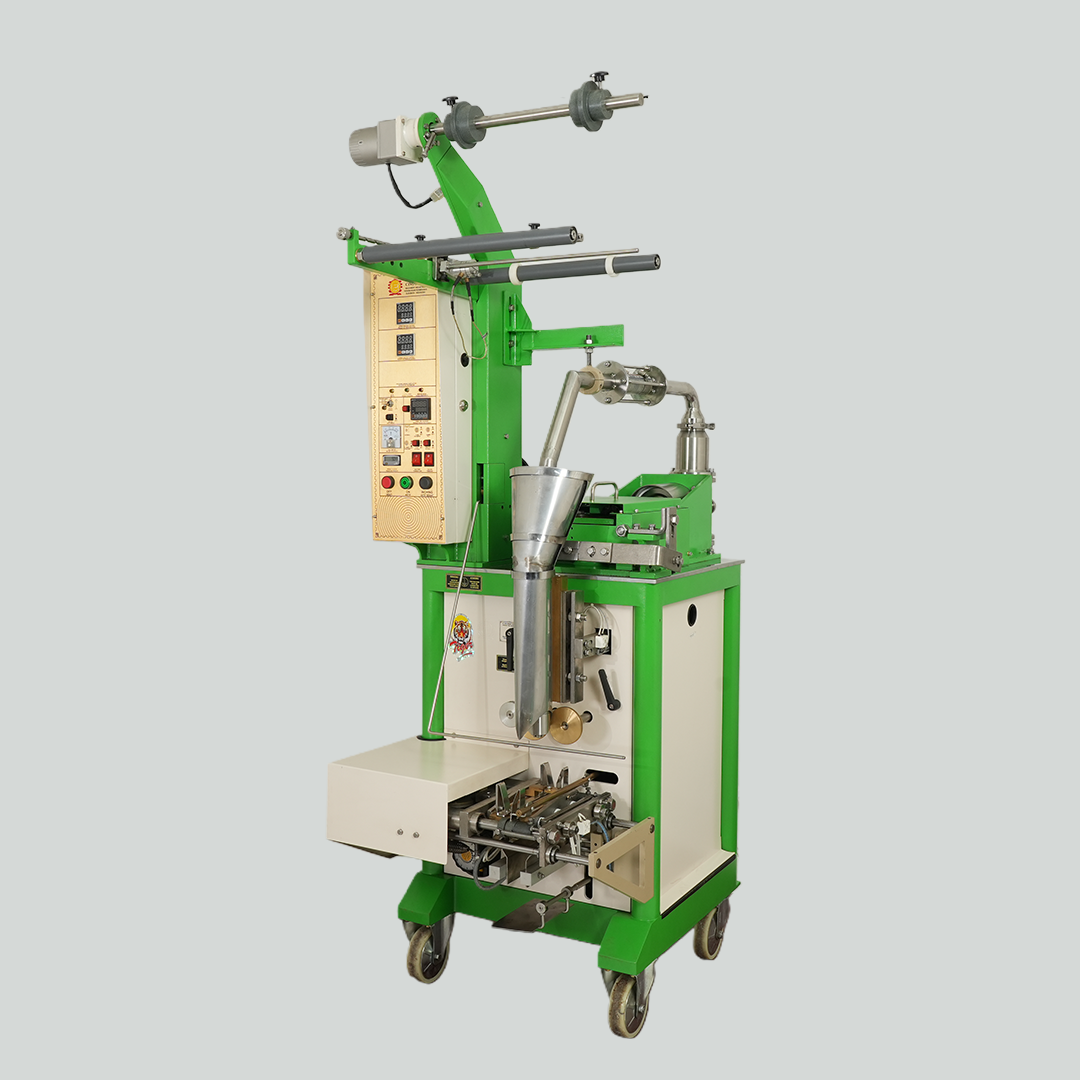

Tiger Liquid (211) 3 Side Seal Toothed Blade
Packaging Size :
Min. 120 mm x 150 mm; Max. 170 mm x 250 mm | Volume : 100 – 1000 cc
Packaging Speed :
18 – 52 bags/minute
Speed Controller :
Variable Speed Pulley
Speed Reducer :
1 : 50
Main Motor :
AC 380 V; 3 Phase; 50 Hz; 1,5 HP
Power :
AC 380 V; 2,1 – 8,4 A; 3 Phase; 50 Hz
Heater :
Upper: 600 W; Lower: 600 W; 1 Phase 220 Volt
Dimention (LxWxH) :
1230 mm x 720 mm x 1930 mm
Weight :
... kg
Optional Parts :
Date Coding; Paper Sensor Autonics; Main Motor 220 Volt 1 Phase 2 HP
COMPATIBLE PACKAGING MATERIALS:
OPP + PE/PP, PET + Dry Aluminium + SPE/LLDPE, PET + PE + LLDPE, Nylon + LLDPE, OPP + CPP Metz., TYVEK paper + (Nylon + LLDPE), NITTO paper + PE, and all heat-sealable multi-layer plastics (not suitable for single-layer plastics).
