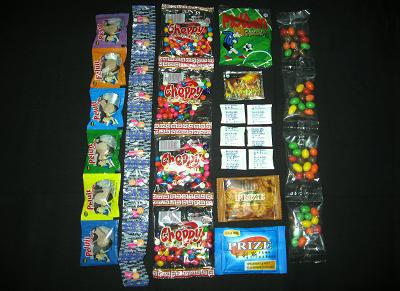

Examples of tablet substances :
chocolate coated biscuits, round hard candies (flavored lozenges), round shape medicinal herbs pill, silica gel, etc.

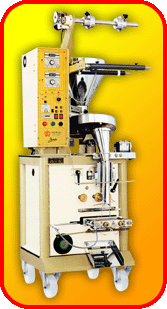

Jumbo Tablet Machine Variants :

Specification	Center Seal	Three Side Seal	Four Side Seal
Packing Size	Min. 20 x 40 mm. Max. 140 x 180 mm.	Min. 25 x 40 mm. Max. 130 x 150 mm.	Min. 40 x 40 mm. Max. 130 x 150 mm.
Speed	40 − 100 bags / min.
Speed Controller	Variable Speed Pulley
Speed Reducer	1 : 20
Main Motor	AC 220 V. 1 phase ; 50 Hz. ; 1 HP	AC 220 V. 1 phase ; 50 Hz. ; 0.75 HP	AC 220 V. 1 phase ; 50 Hz. ; 1 HP
Power	AC 220 V. ; 4.5 − 11.0 A. 1 phase ; 50 Hz.	AC 220 V. ; 3.8 − 9.0 A. 1 phase ; 50 Hz.	AC 220 V. ; 4.5 − 12.5 A. 1 phase ; 50 Hz.
Heater	Upper : 350 W. Lower : 500 W.	Upper : 350 W. Lower : 450 W.	Upper Rear : 350 W. Upper Front : 350 W. Lower : 450 W.
Dimension (L x W x H)	950 x 690 x 1830 mm.
Weight	277 kg.	266 kg.	292 kg.

Optional parts (not included in machine standard) :
date / batch coder (emboss or hot ink printer), nitrogen flush device, rolling brush, etc.

• The filling system of machine for tablet substances is based on pieces count, where machine for granular substances is based on weight / volume of substances.
• Provided with product in feed vibration tray and sensor to stabilize the volume of tablets on the volume disc to assure the quantity of tablets that drop into the holes similar with the quantity required.
• Provided in 2 kinds of volume disc choices, i.e. :
  1. 6 times filling in one round of volume disc (for small packs)
  2. 4 times filling in one round of volume disc (for large packs)
• The volume disc is designed for 2 slanting positions (15° and 20°) to compose more perfect filling process.
• The machines have magnificent features of simple, low cost, easy to operate and heavy duty.
• Please click here for information about various sealing types, sealing patterns and cutting types.
• Please click here to make an inquiry.
• Specification is subject to change.
